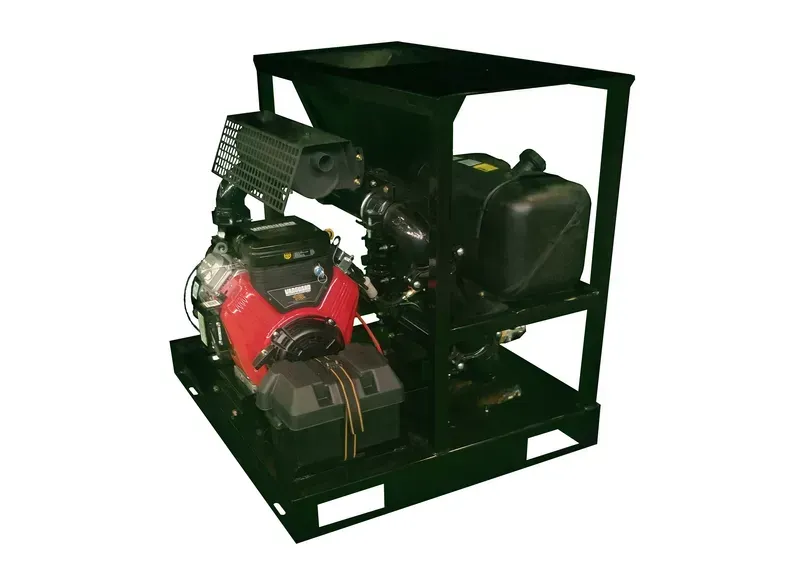

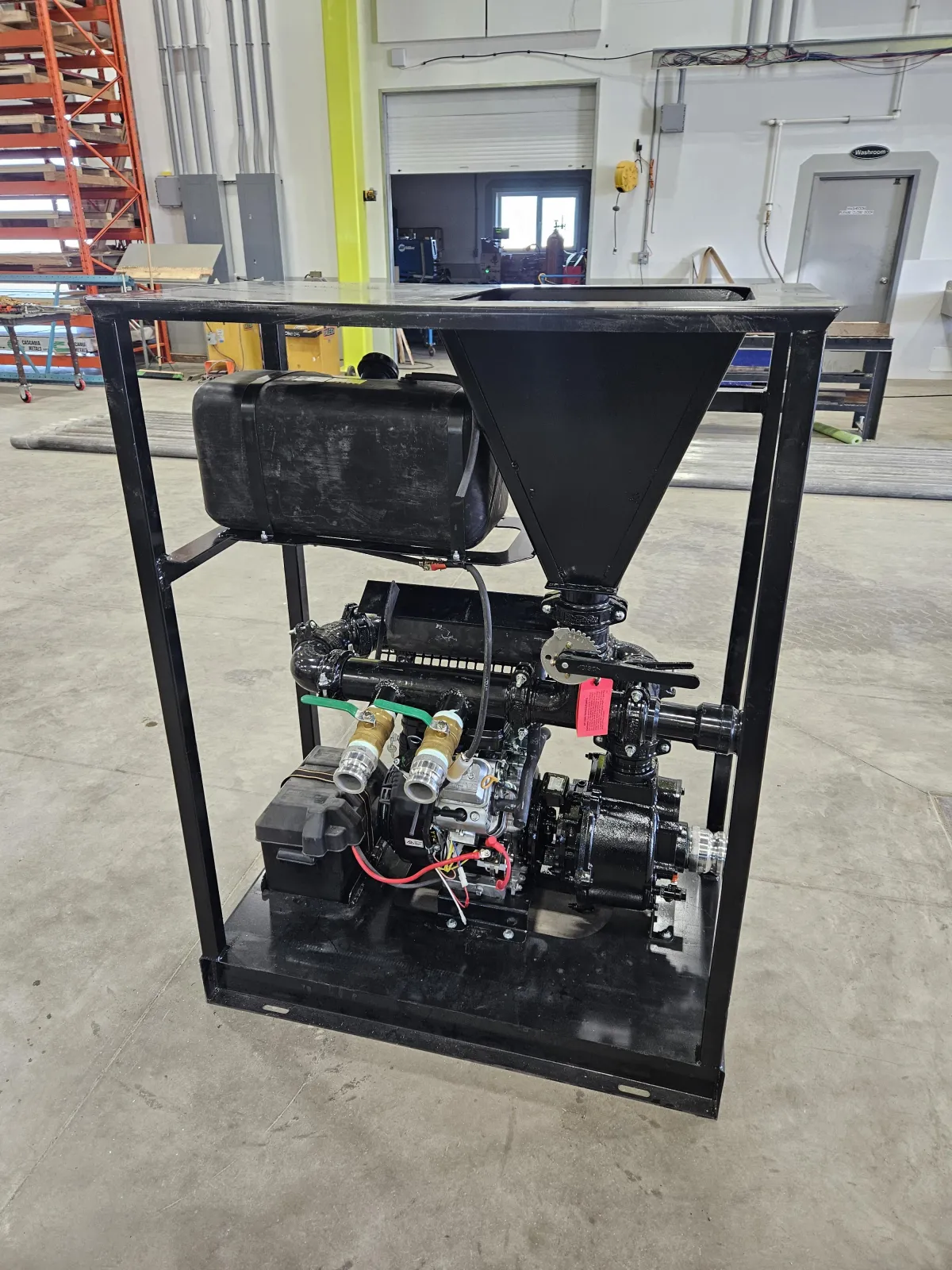

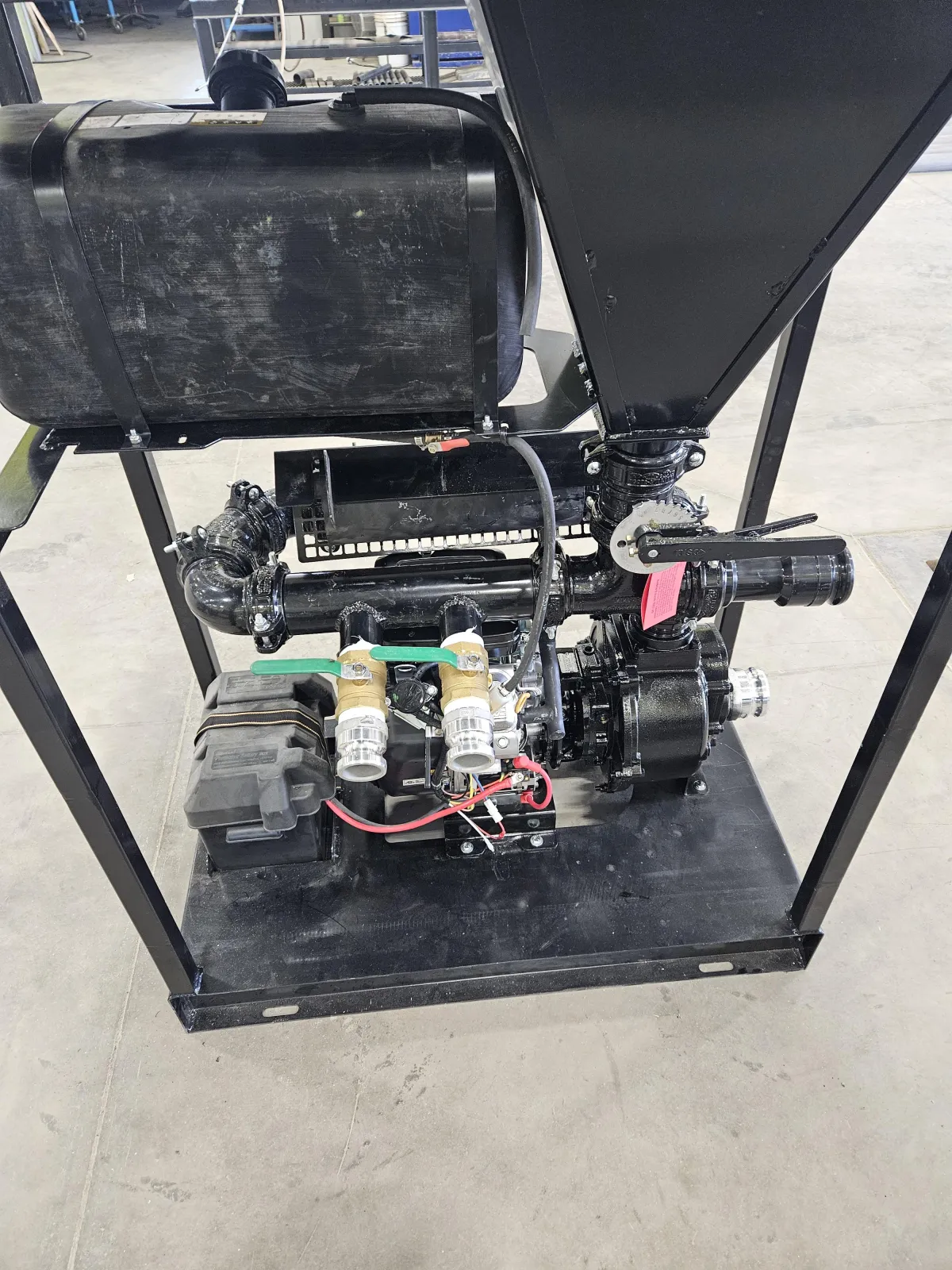

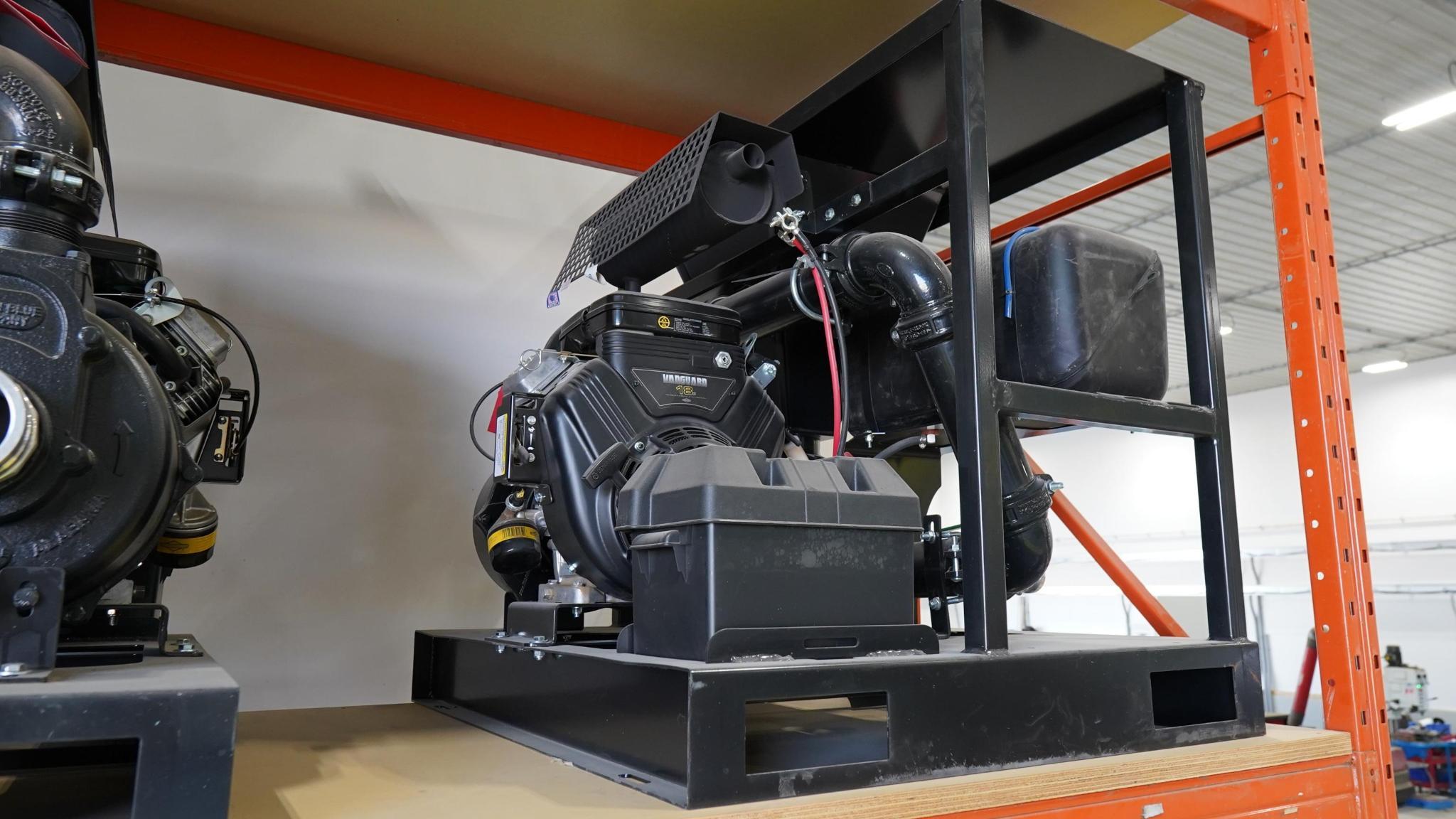

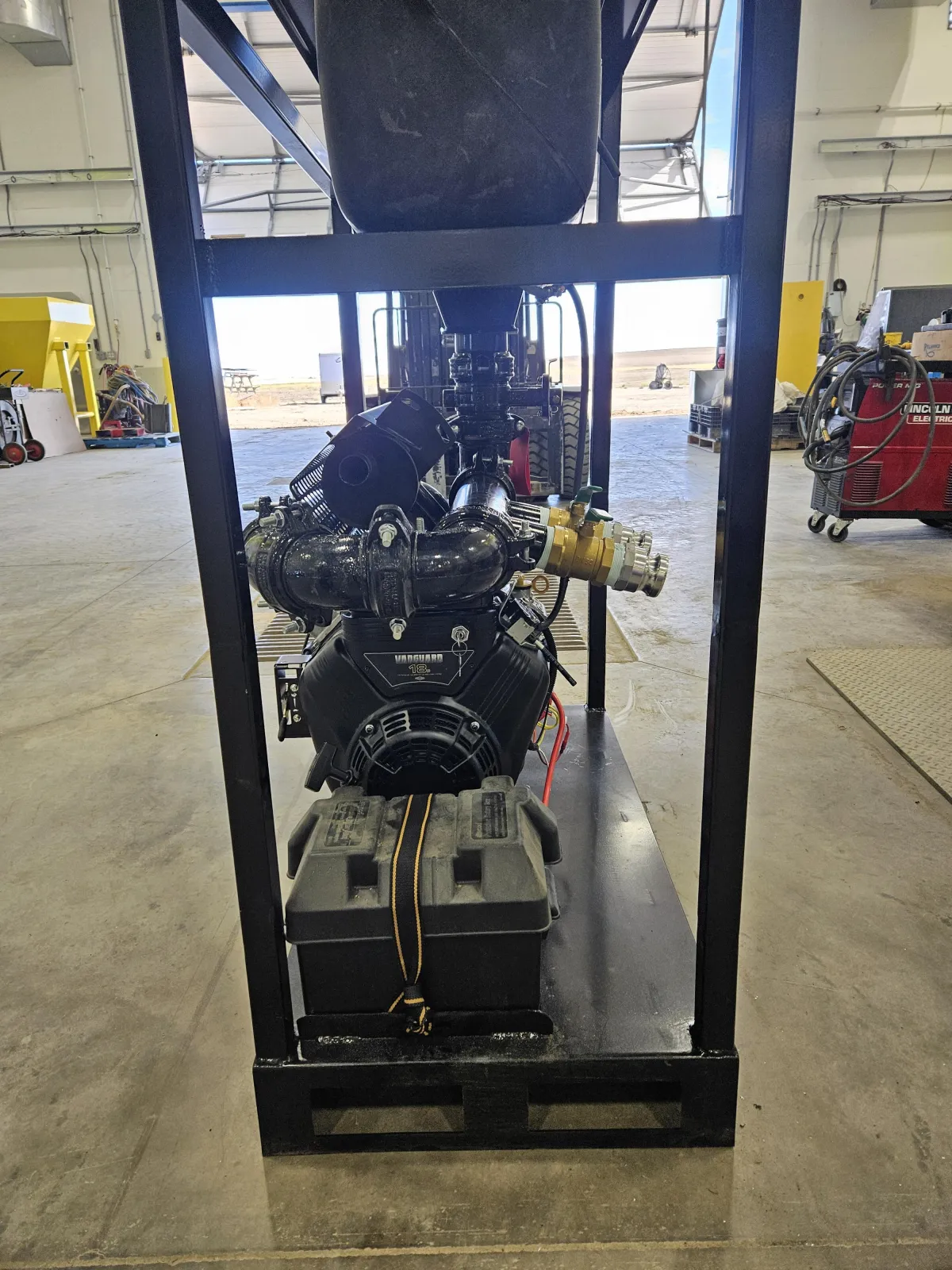

RNM-3G MIXER

The RNM-3G Mixer sets a new standard for mud mixing systems. Its compact design saves valuable space, while its innovative Venturi system delivers unmatched flow rates and hydration levels. Experience faster mixing, improved productivity, and consistent results with the RNM-3G Mixer.

The RNM-3G Mixer's advertised 60 km/hr flow rate translates to approximately 16.67 meters per second.

In comparison, conventional mud mixers typically have flow rates in the range of 1-5 meters per second.

The 90% hydration rate out of the hopper also points towards superior mixing efficiency, potentially reducing the need for additional mixing steps or equipment.

Specifications

Model - RNM-3G

Engine - Briggs & Stratton 18hp air-cooled gasoline engine

* - optional - Briggs & Stratton 16hp

Pump - 3" cast iron centrifugal pump

Fuel Tank - 8-gallon (30.3L)heavy wall (CARB TP901 and EPA40CFR1060)

Connections

Standard -
3" male camlock on pump suction side

3” male camlock on discharge outlet

2 x 2" male camlock for supply hoses

Optional -
1 x 2” male camlock for supply hose

1 x 3” male Victaulic connector for supply hose

Dimensions - 36"W x 42"L x 38"H
